<b>Fingerprint</b><br />Scanner <b>MF10</b>

Fingerprint
Scanner MF10

Fast-Tracking Identification Processes

Rapid Fingerprint Capture

Captures ten fingerprints in ten seconds or less, ensuring fast and efficient enrollment even with dry or dirty fingers.

Outstanding Durability

Operates reliably in extreme temperatures and sunlight, meeting U.S. military durability standards for multiple environments.

FBI-Certified Quality

FBI Appendix F certified, providing high accuracy and reliability for secure and precise fingerprint capture.

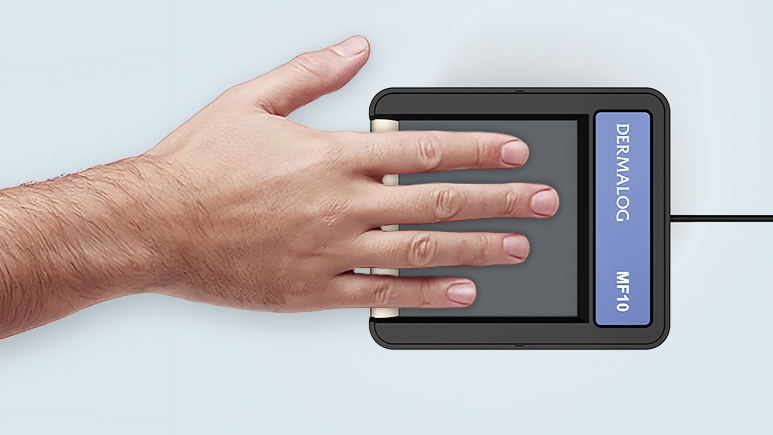

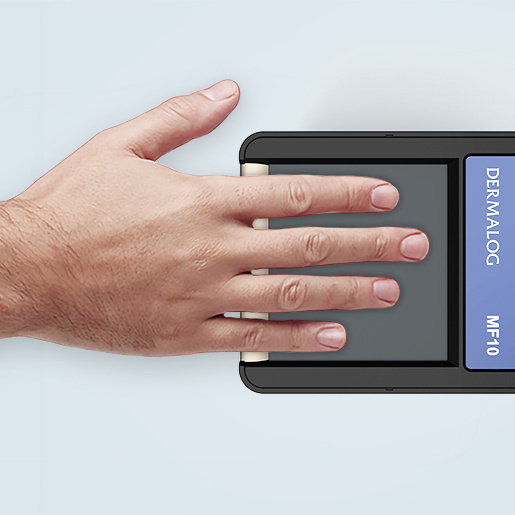

DERMALOG MF10: Unmatched Speed and Durability in Biometric Identification

The DERMALOG MF10 fingerprint scanner features fast ten-fingerprint capture, seamless performance with dry or dirty fingers and outstanding durability under extreme conditions. The FBI Appendix F certified device ensures high accuracy and security in biometric identification. The compact and energy-efficient solution is designed for low-maintenance operation. In addition, the MF10 is easy to set up via plug-and-play and is compatible with a wide range of systems.


MF10 Product Features

  1. Rapid ten-fingerprint capture (4-4-2)
  2. FBI Appendix F certified FAP 60 scanner
  3. Captures flat and rolled fingerprints

NUMEROUS DERMALOG APPLICATIONS FOR MF10

Border Control

The most advanced solution with the latest technologies for fully integrated border control.

Show more

Police AFIS

State-of-the-art solution that provides comprehensive support for forensic investigations and law enforcement.

Show more

Biometric Banking

Complete biometric solutions for banks - to ensure the highest level of security and the best possible KYC.

Show more

Biometric Documents

Integrated biometrics provide maximum security and authenticity for a wide range of documents.

Show more

MF10 Technical Data

  • Capture Area

    81.2 mm × 76.3 mm (3.2” × 3.0”)

  • Fingerprint Acquisition Profile (FAP)

    FAP 60

  • Platen Size

    88.9 mm × 80.0 mm (3.5” × 3.1”)

  • Sensor Type

    Light-emitting sensor

  • Image Resolution

    500 dpi

  • Image Size

    1600 px × 1500 px, 256 gray levels

  • Image File Size

    Approx. 2.3 MB

  • Capture Options

    4-print, 2-print, single print, rolled fingerprint

  • Certification

    FBI Appendix F

  • Product Dimensions

    114.7 mm × 131.8 mm × 82 mm (4.5” × 5.1” × 3.2”)

  • Product Weight

    725 g (1.6 lbs)

  • Power Supply

    USB 2.0 (4.4 V to 5.25 V)

  • Power Consumption

    < 300 mA (full scanning) < 2 mA (sleep mode)

  • Interface

    Minimum USB 2.0 required; interoperable with USB 3.0 (Bitrate: maximum 480 mbps)

  • Operating Temperature

    -10 °C to +55 °C (14 °F to 131 °F)

  • Storage Temperature

    -30 °C to +60 °C (-22 °F to 140 °F)

  • Humidity

    20 % to 95 % non-condensing

  • Ingress Protection

    IP65 sealed bezel to the scanning surface

  • OS Support

    Microsoft Windows, Android
